“风之亭”是位于安吉龙山源的一座竹结构建筑，为游人提供休憩的场所，并容纳小型演出和团建活动。设计捕捉到不同面向的景观特质，采用了分岔的人字形棚屋作为空间原型。充分发掘竹结构复合增强的潜力，独创性地提出了弦支竹梁+边拱的复合构型，大大减少了结构落地的数量，实现了轻盈而连续的曲面覆盖。最终的空间好像风吹过，帘篷鼓胀起来，唤起了人们在自然中受到庇护的原始感受。
Wind Pavilion, a bamboo-structured building located at the Longshanyuan in Anji city, serves tourist as a place for the rest, a small group as an accommodation for performances and a company as team building events. The design captures various landscapes characteristics from different aspects and uses bifurcated herringbone sheds as the spatial prototype. With fully explored bamboo’s potential structure of composite and reinformation, we proposed originally a composite configuration of string-supported bamboo beam and side arches, which greatly reduces the amount of frames landing on the ground and realizes a curved surface with lithe and coherence. When the wind blows, the eventual space seems like an expensive canopy, evoking people’s initial feeling of being protecting from nature.

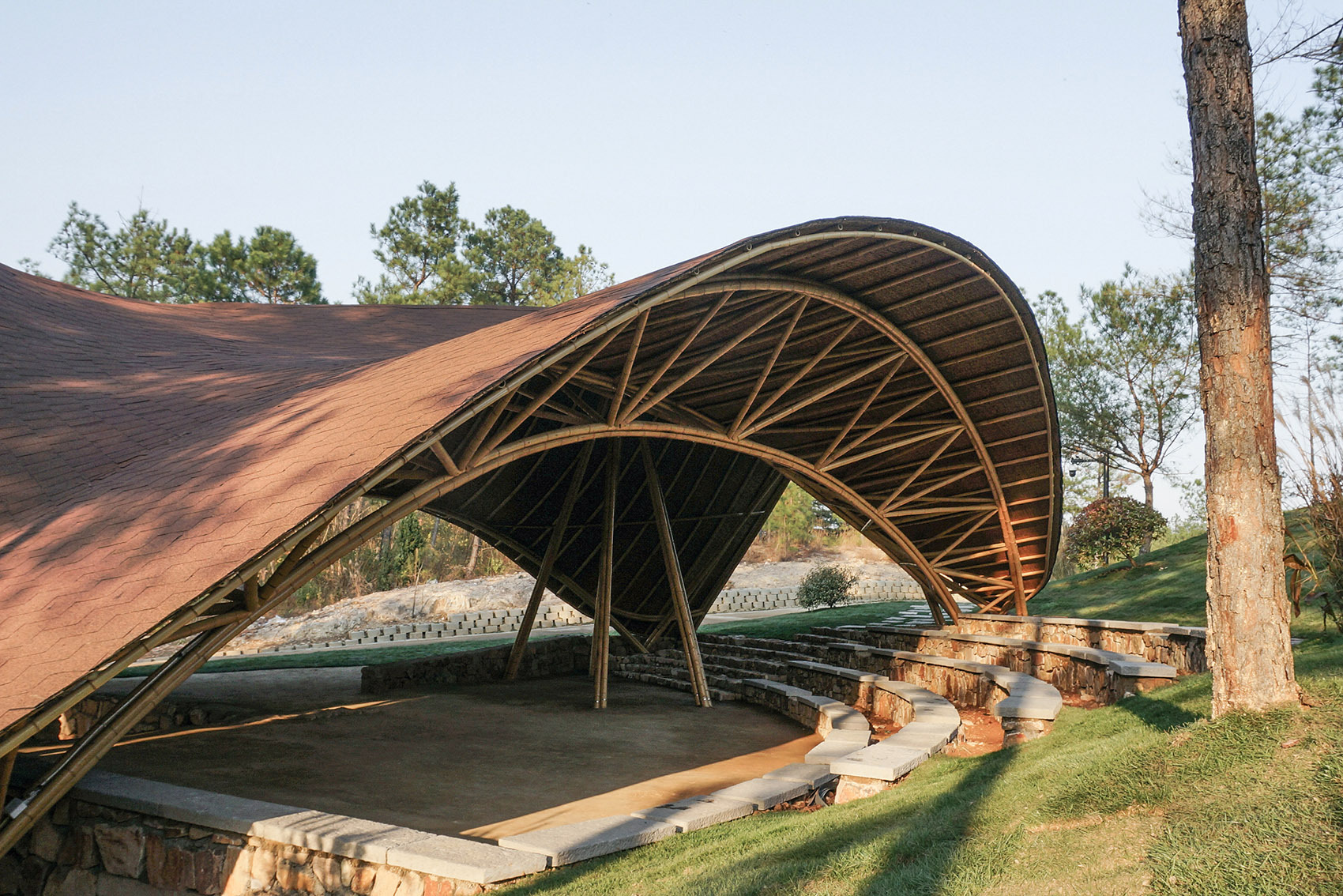

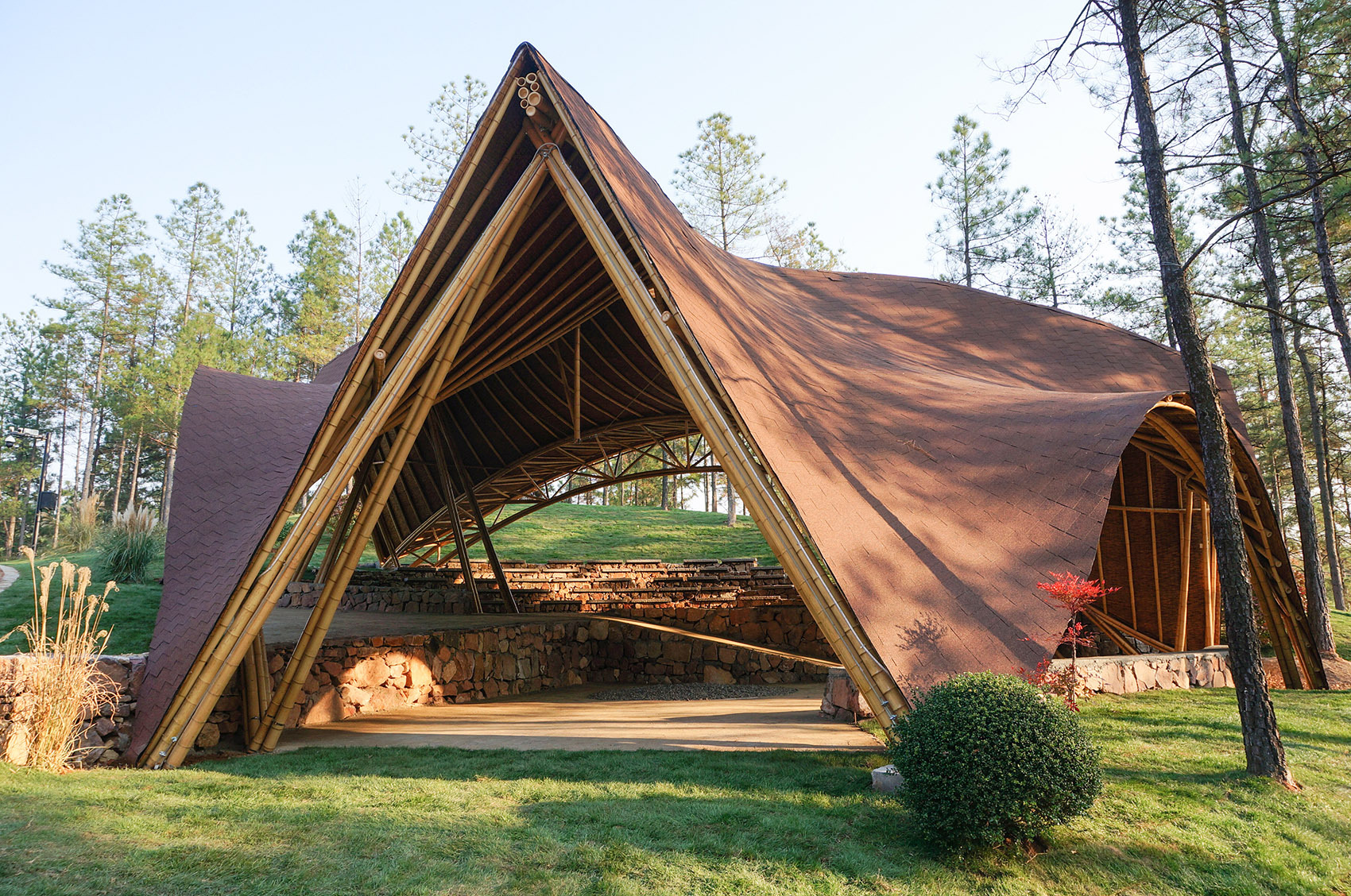

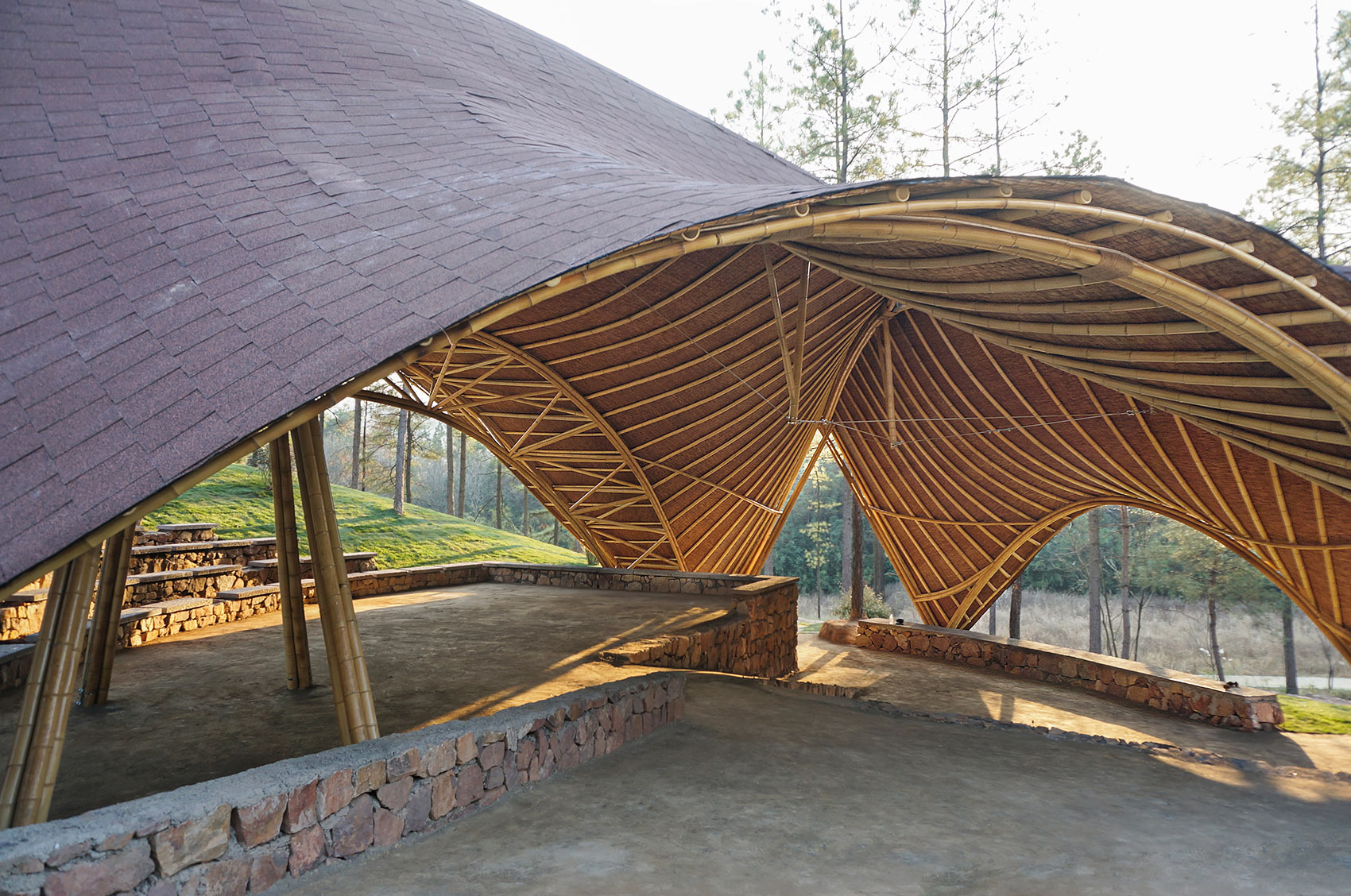

▼风之亭外观，exterior view

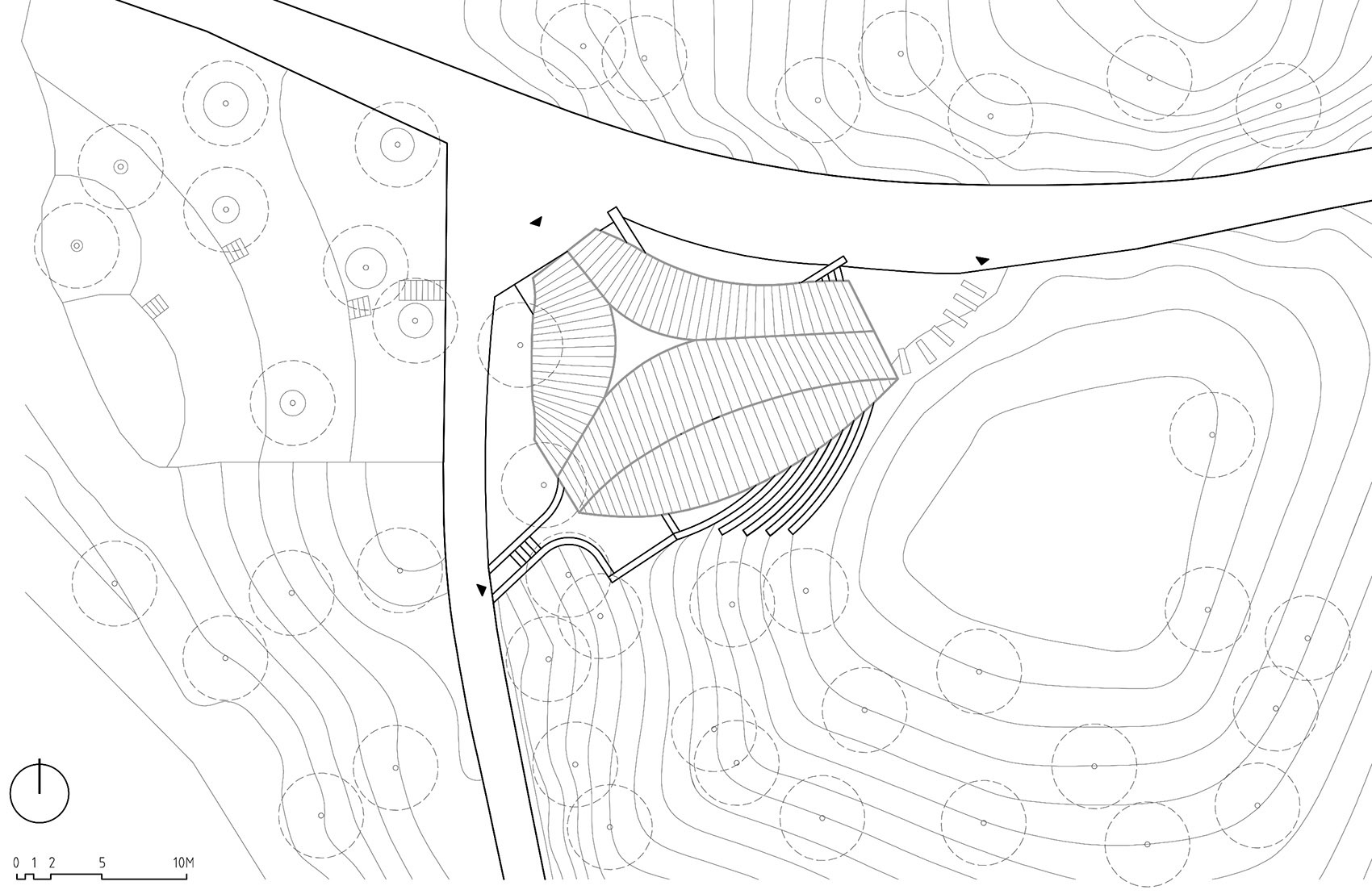

基地选址在一个具有公共潜质的坡地上，紧邻一个三岔路口。主路是一条5 m宽的土路，沿着东西方向连接人文园区和自然遗址园区。岔路是一条3 m宽的小路，连接着西侧供烧烤的台地以及南面更低处的果园和田野。基地西低东高，在道路一侧的坡度约为13%，绝对高差约3 m。基地内部分为平整地面，东部、南部都有明显陡坡。设计希望顺应地形，最大化利用现有景观资源，创造开放而连续的建筑空间。

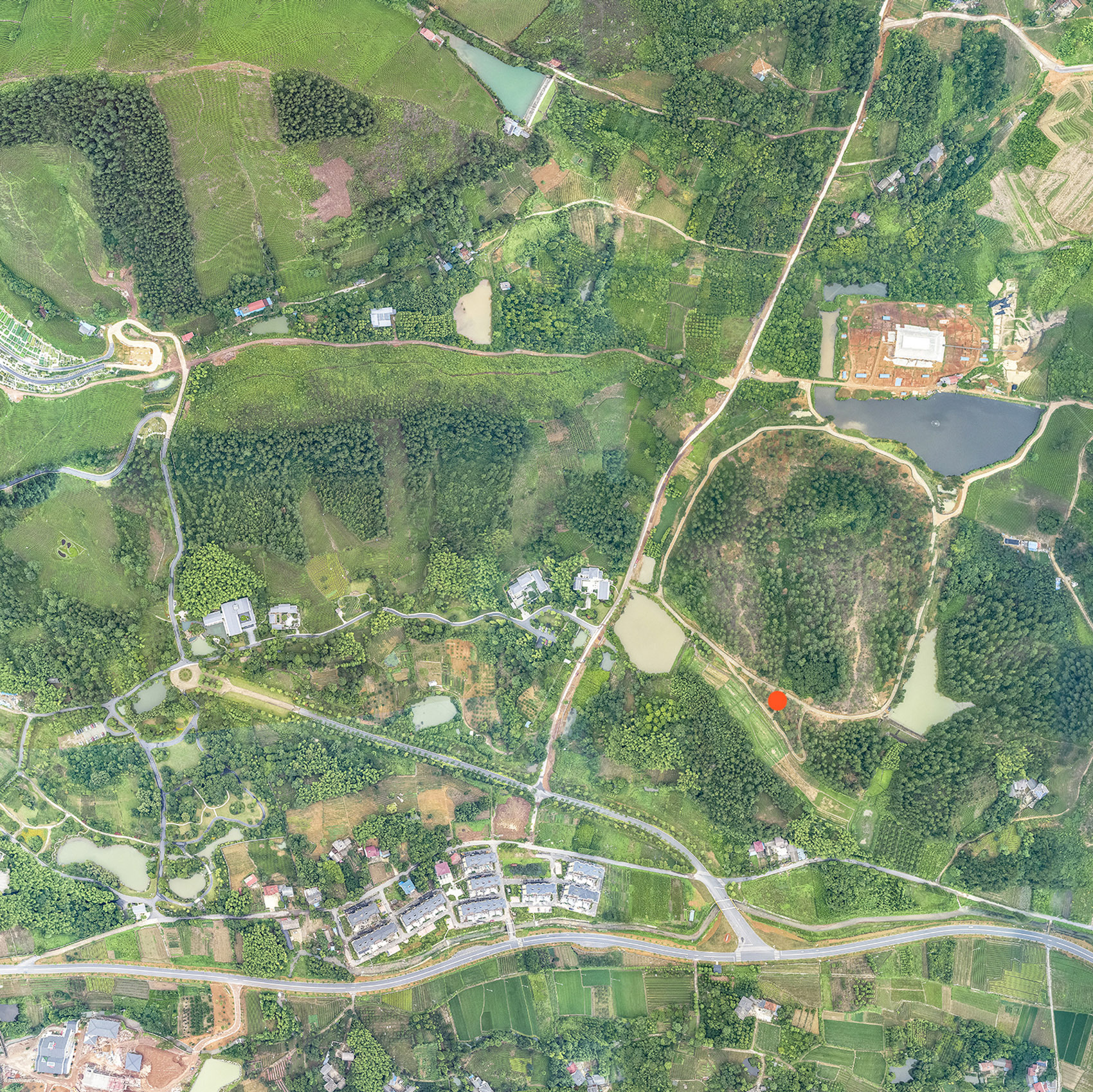

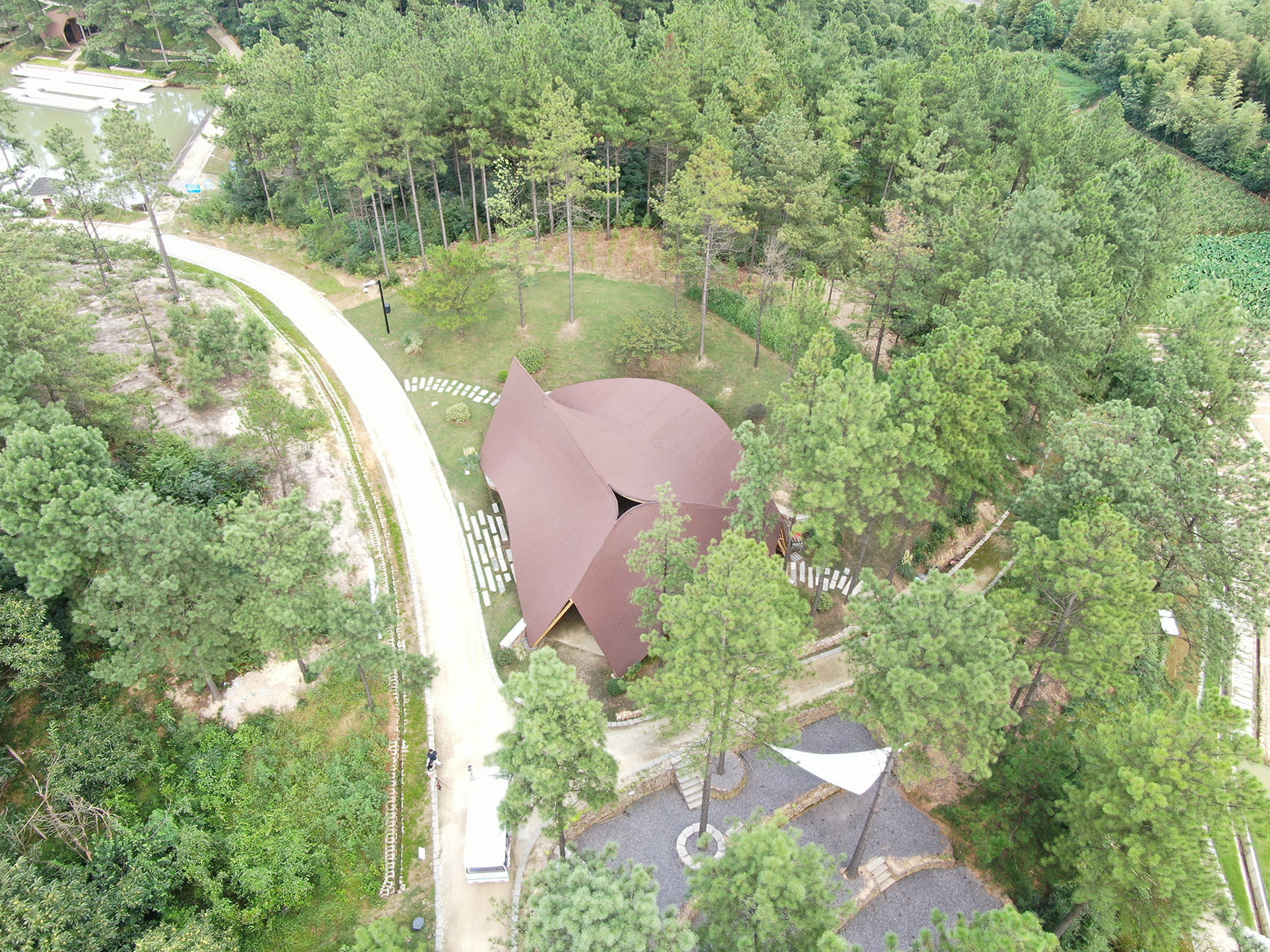

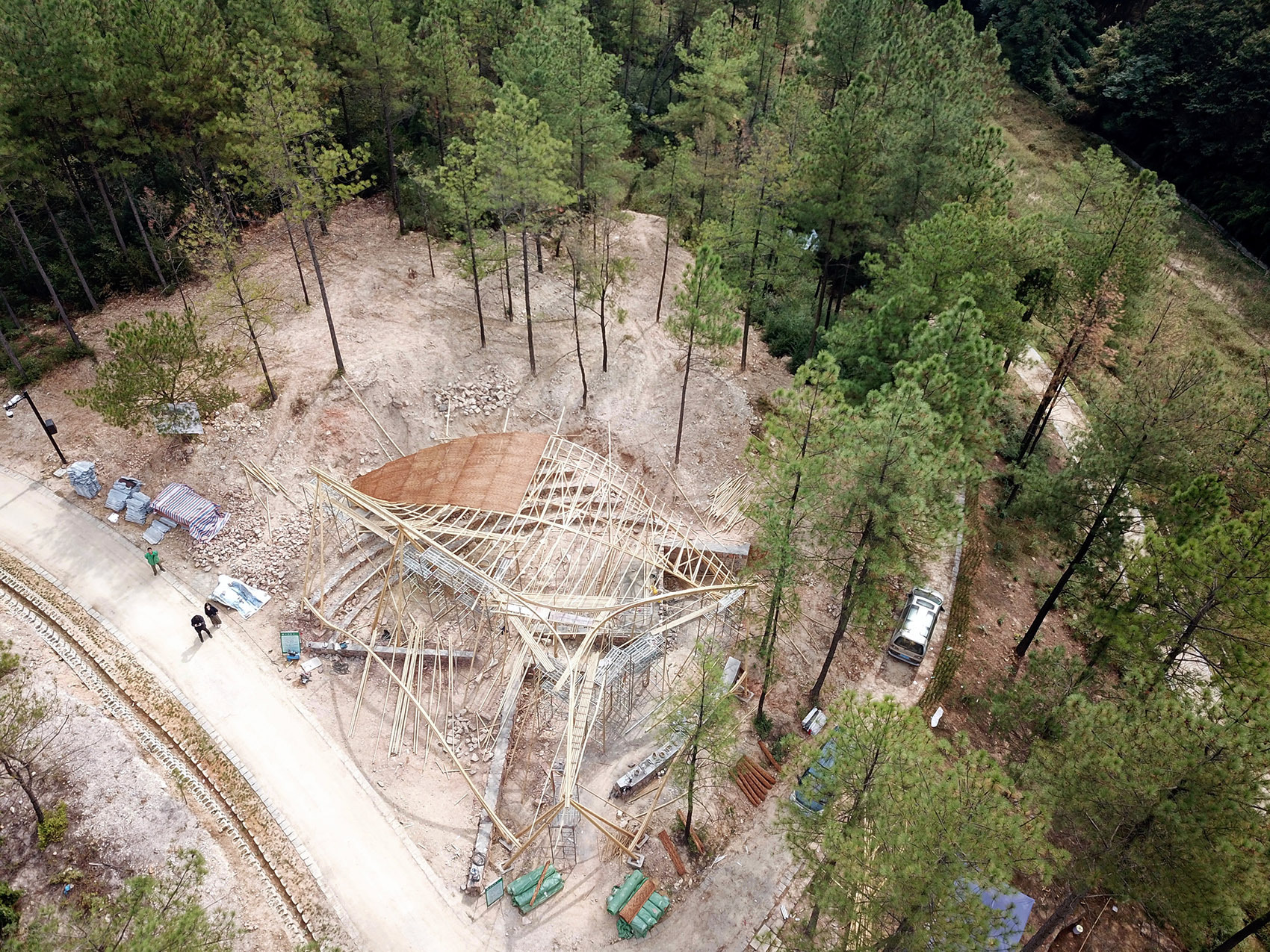

▼鸟瞰图，aerial view
The site is selected on a slope with public potentials and next to a divergence. The main road is a 5cm wide packway connecting the Humanity Park and Natural Heritage Park along the east-west direction. The divergence is a 3cm wide path, which connecting a terrace on west side for barbecues, and a orchard and fields lower on the south side. The base is low in the west and high in the east side. The slope on one side of the road is approximate 13%, and the absolute height difference is about 3m. The inter ground in base is partially flat, with obvious steep slopes in the east and south part. The design hopes to conform to the terrain, in order to maximize the use of existing landscape resources and create a open continuous architectural space.

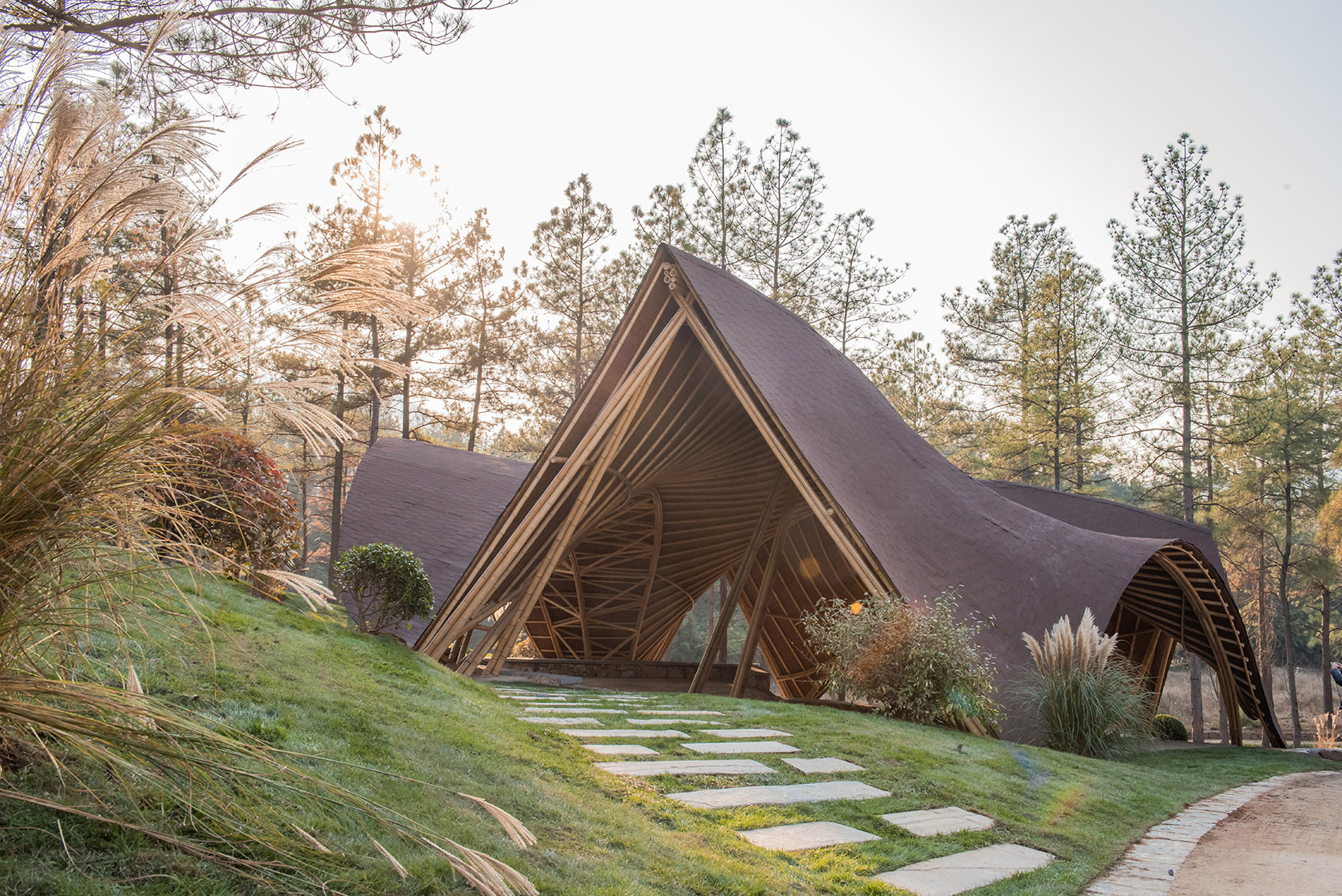

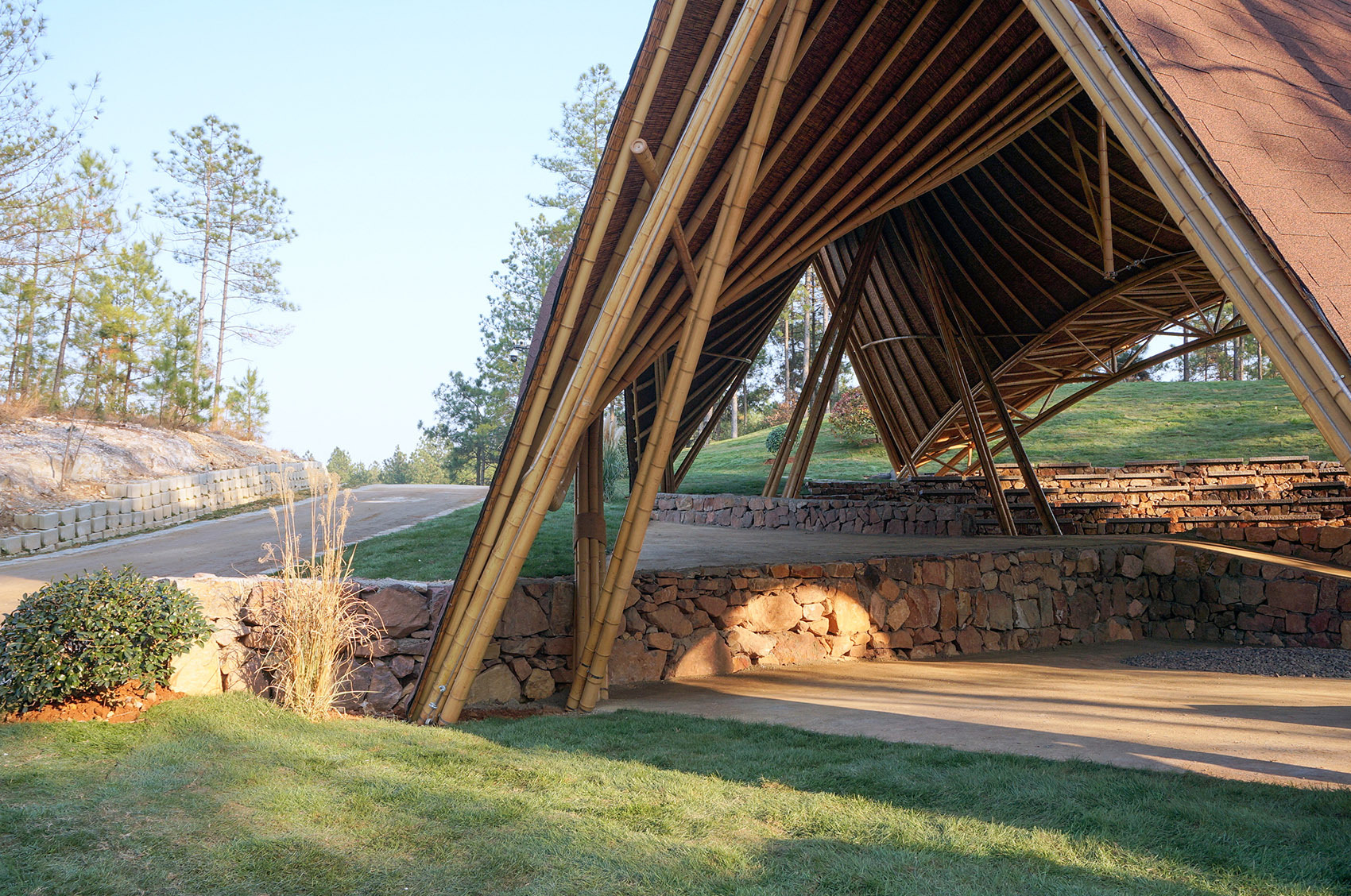

▼主路入口，main entrance

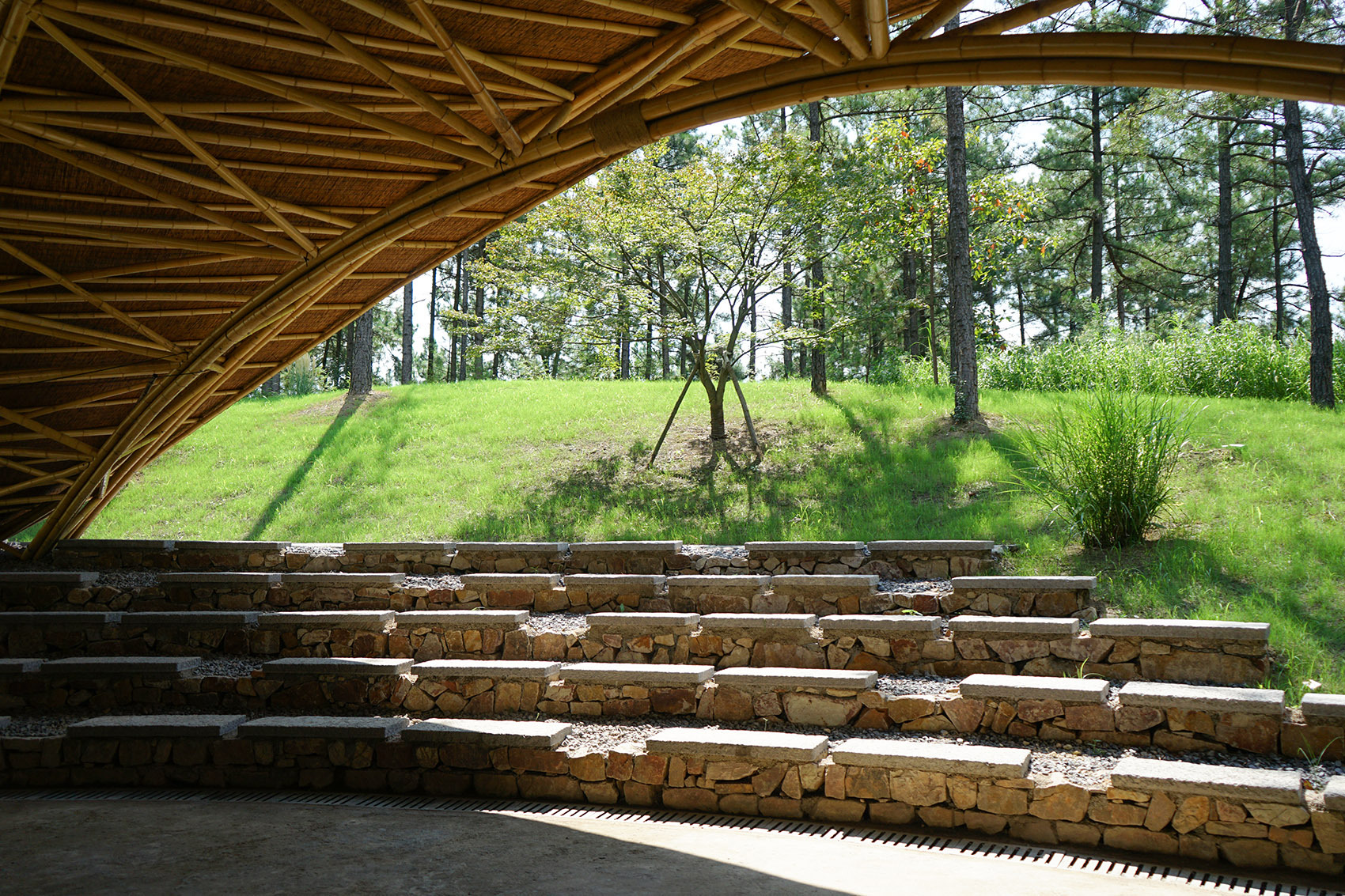

▼入口高差，changing heights of the site

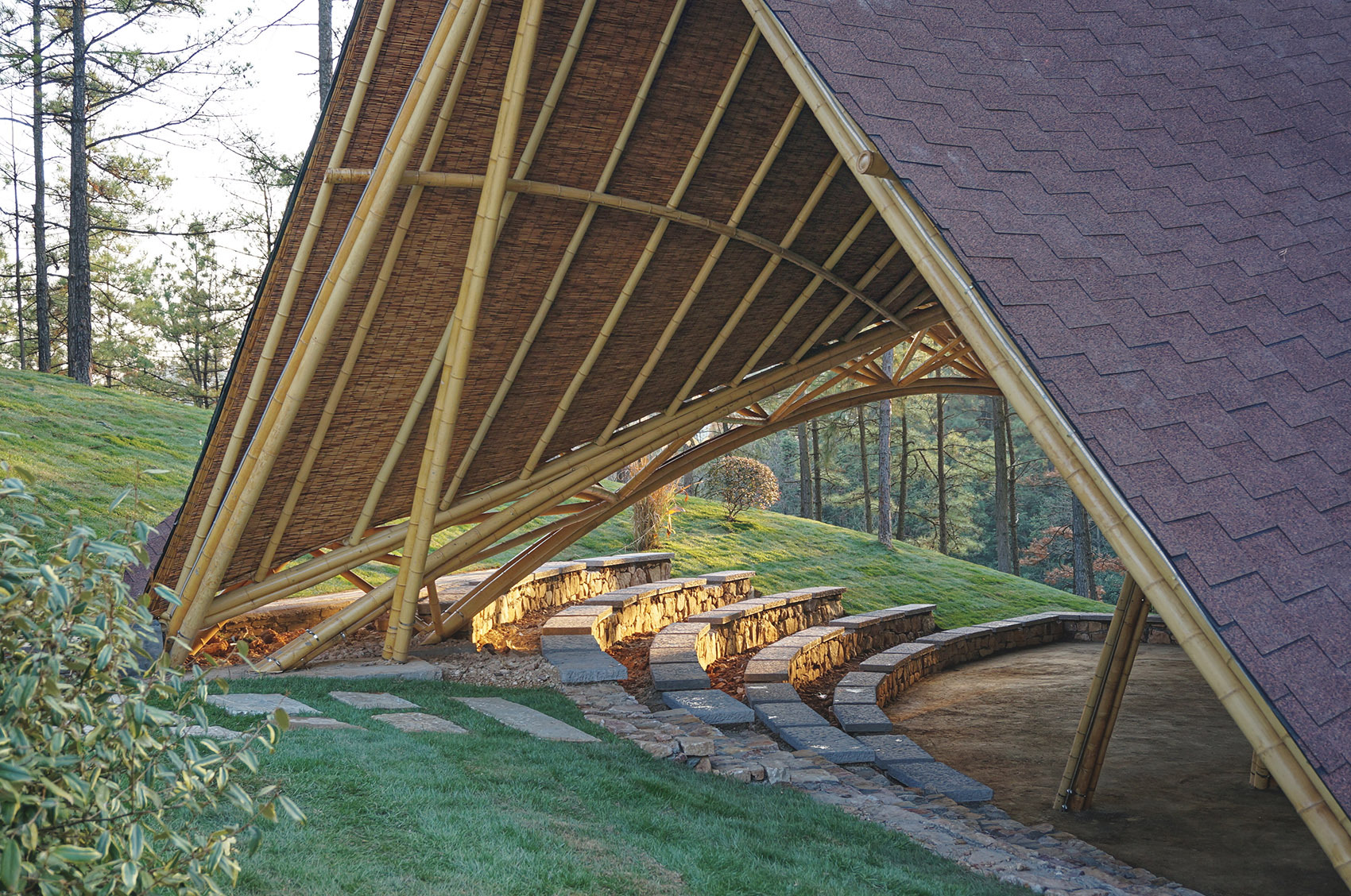

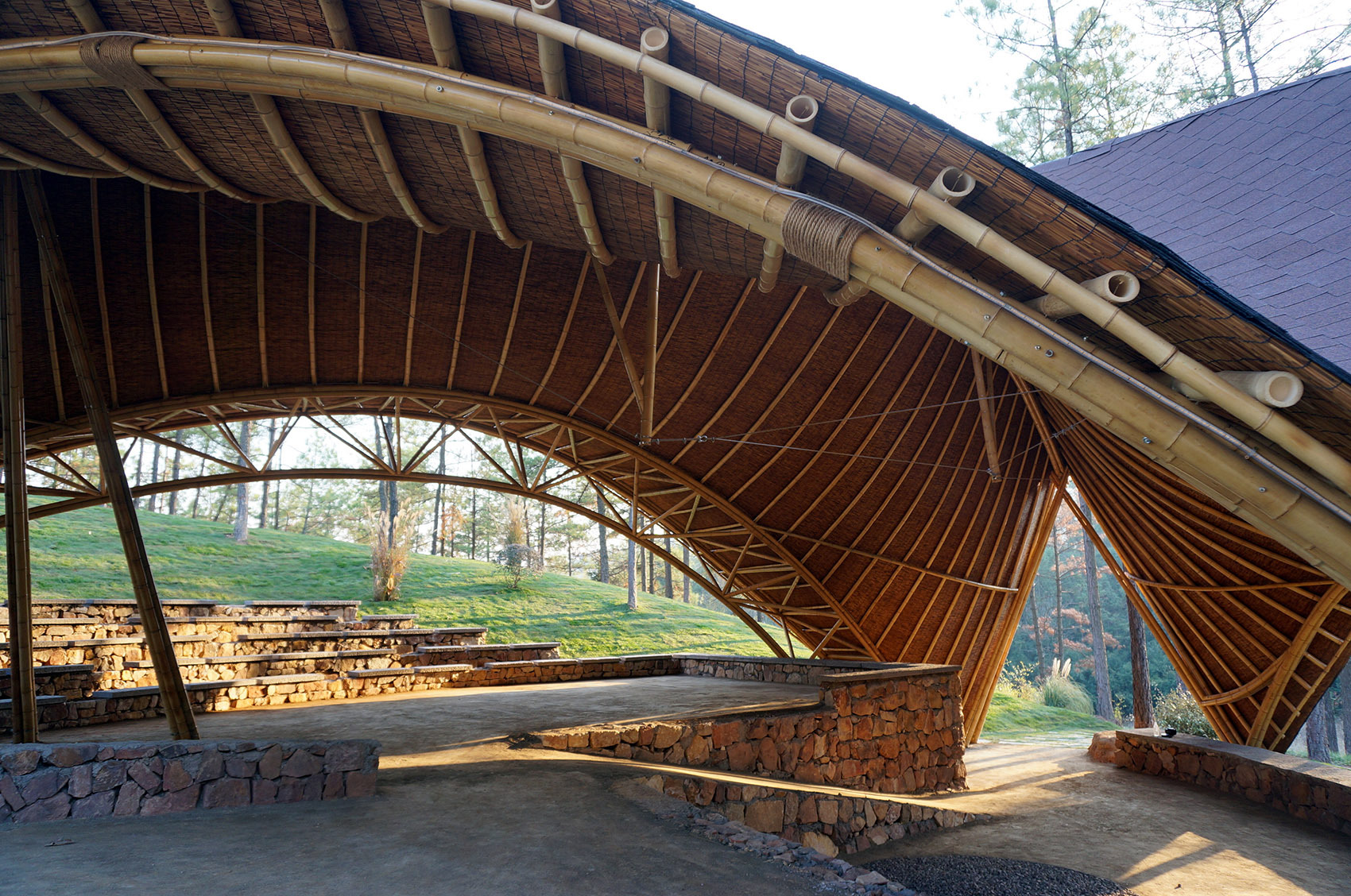

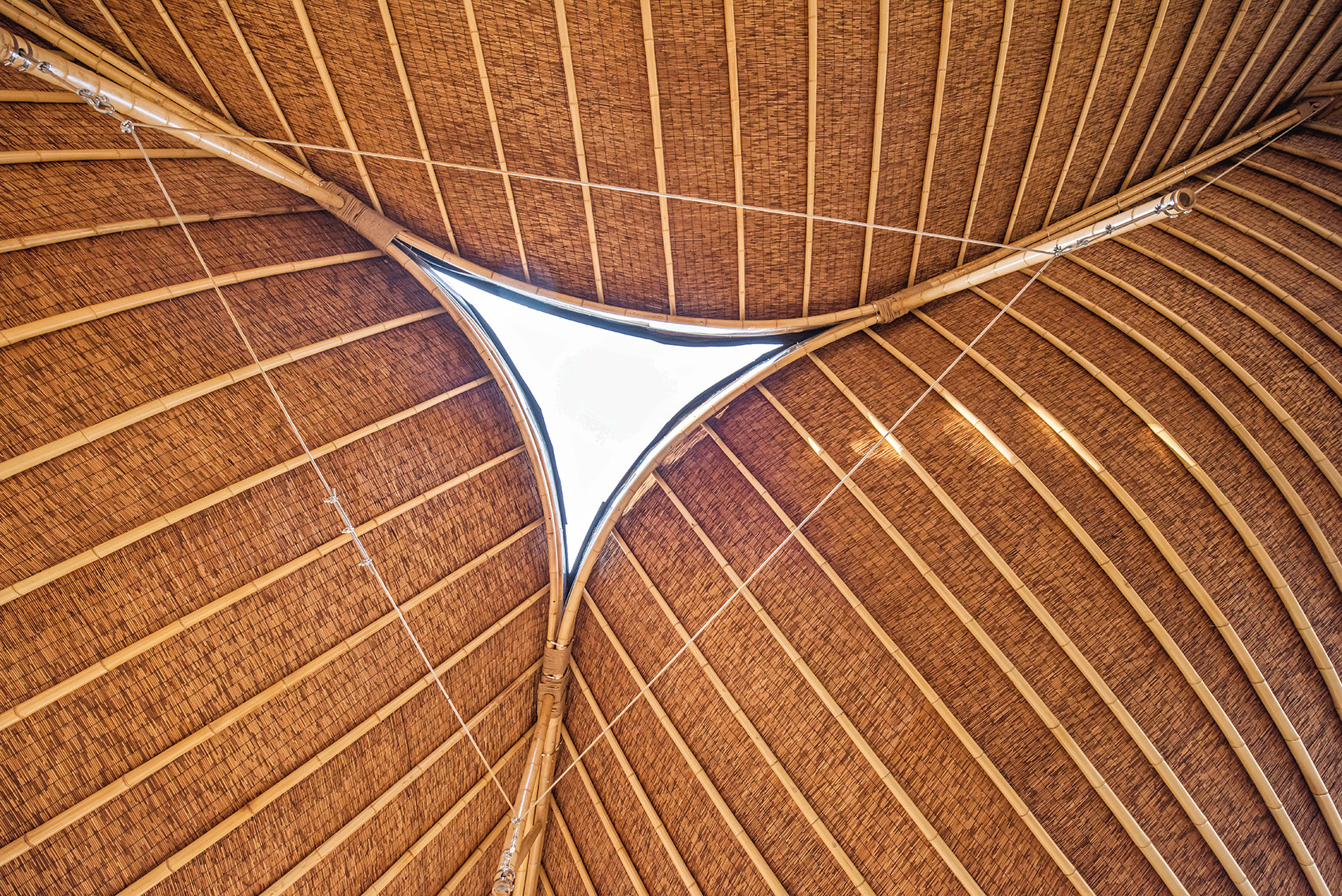

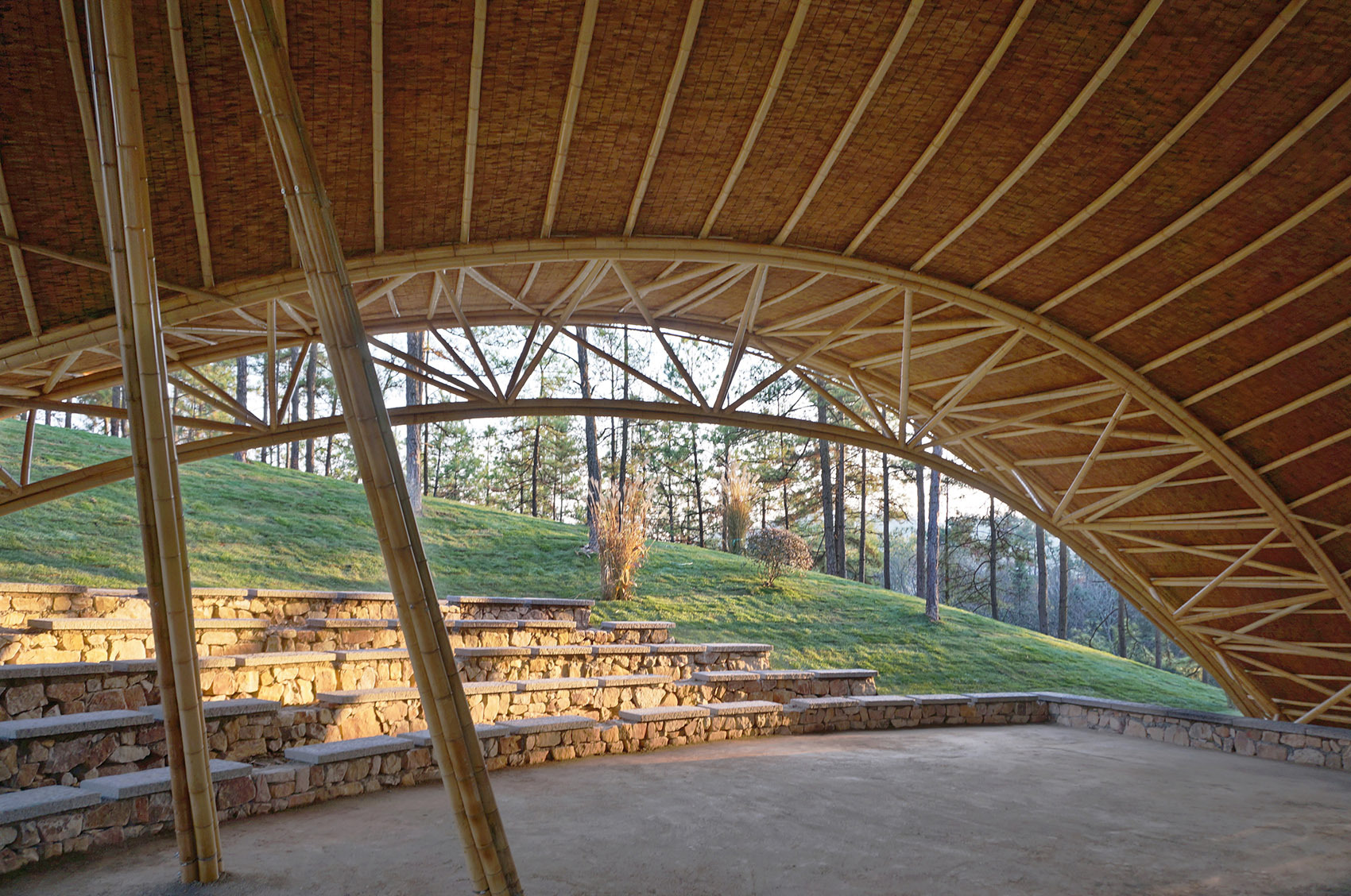

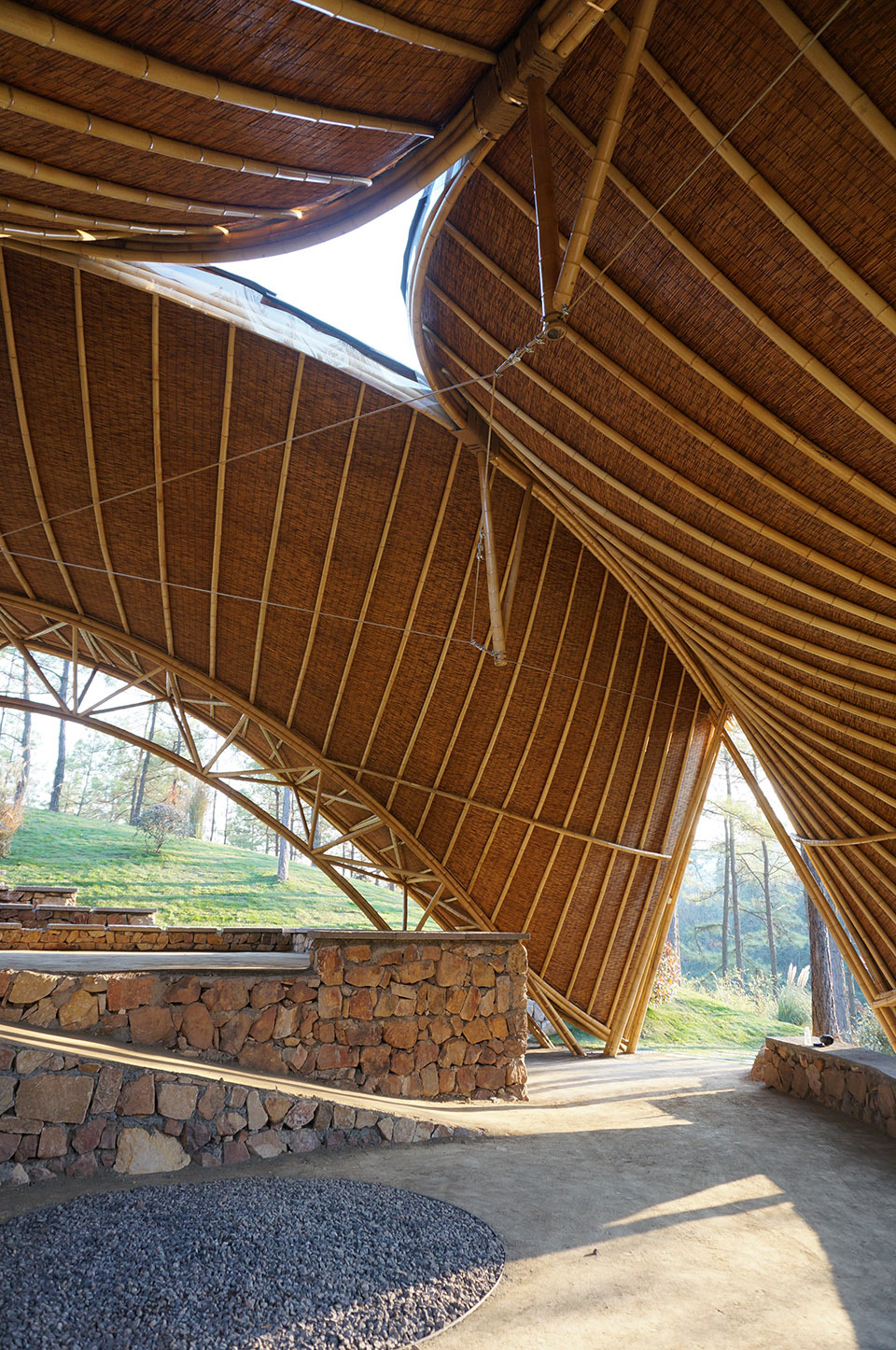

▼隐藏在洞口处的人字撑细部，details of the structure

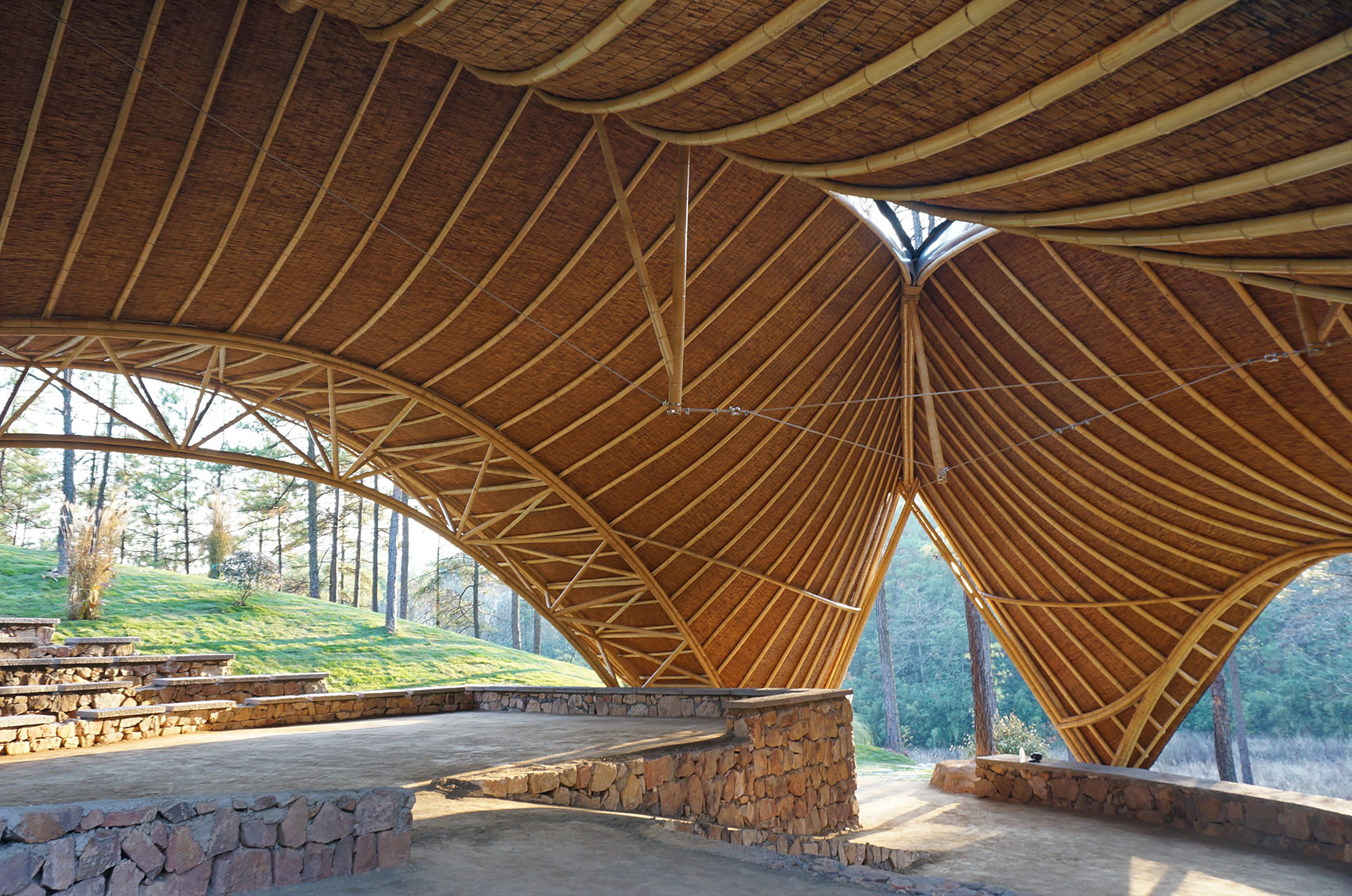

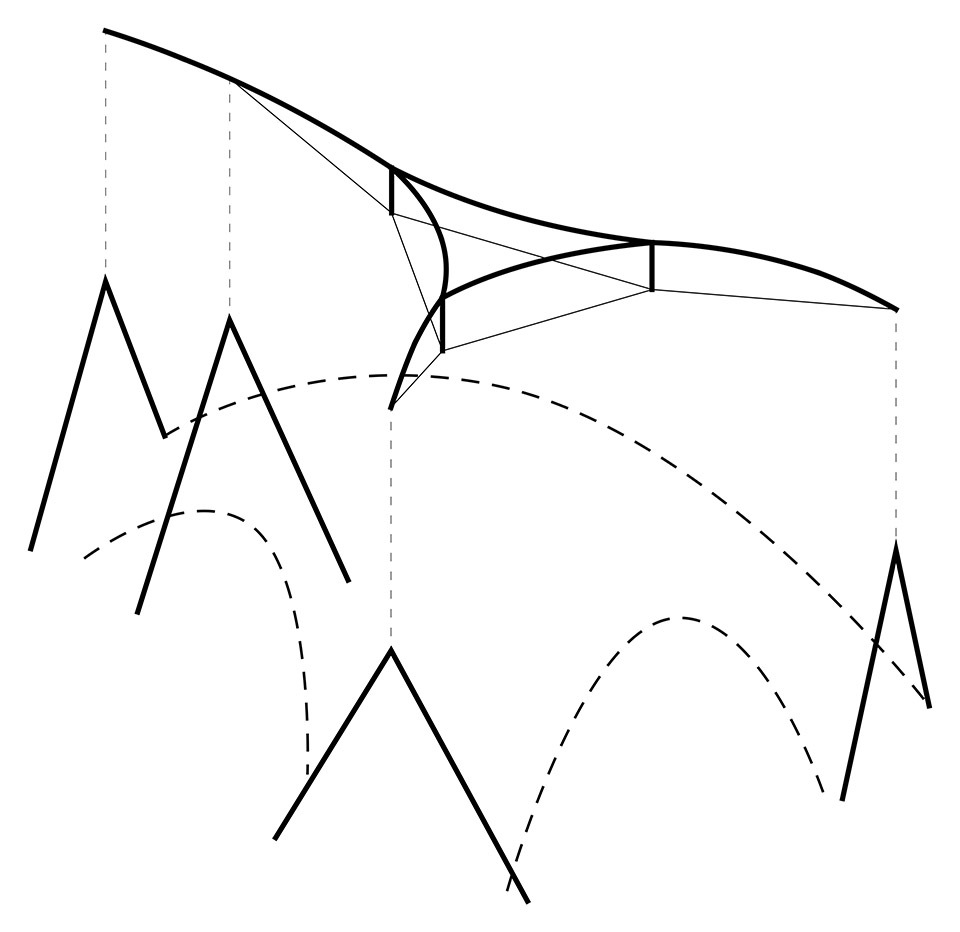

场地条件和竹子的结构特性激发了空间的初始意向：分岔的人字形棚屋，以连续的曲面屋顶覆盖在起伏的地形上，向三个方向的景色打开，宛如风吹过拂起的帘篷。结构利用分岔的几何特性进行整合优化，并通过弦支梁与复合构件的使用最大程度地减少落柱，确保漫步的自在体验。
The conditions of the site and structural characteristics of the bamboo inspired the initiative intention of the space. The bifurcated herringbone shed covered with a coherent curved roof on the undulating terrain, open to different sceneries in three directions, which like the canopy blown softly by the wind. The structure is integrated and optimized using the geometric characteristics of the bifurcation, and use chord beams and composite components to minimize ground columns within a maximum possibility, in order to ensure a comfortable experience of walking.

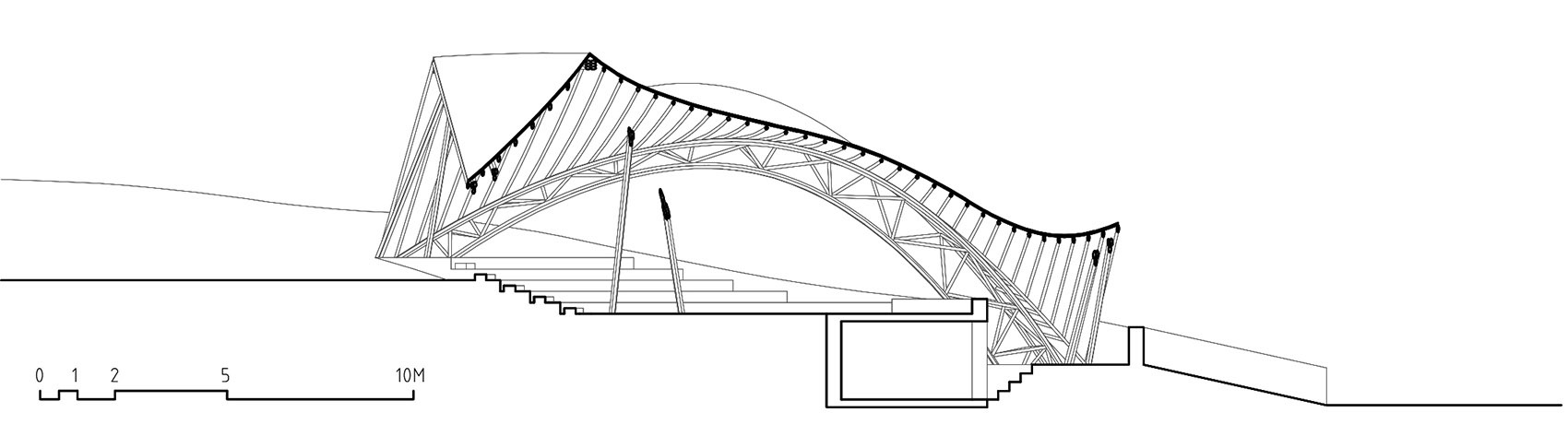

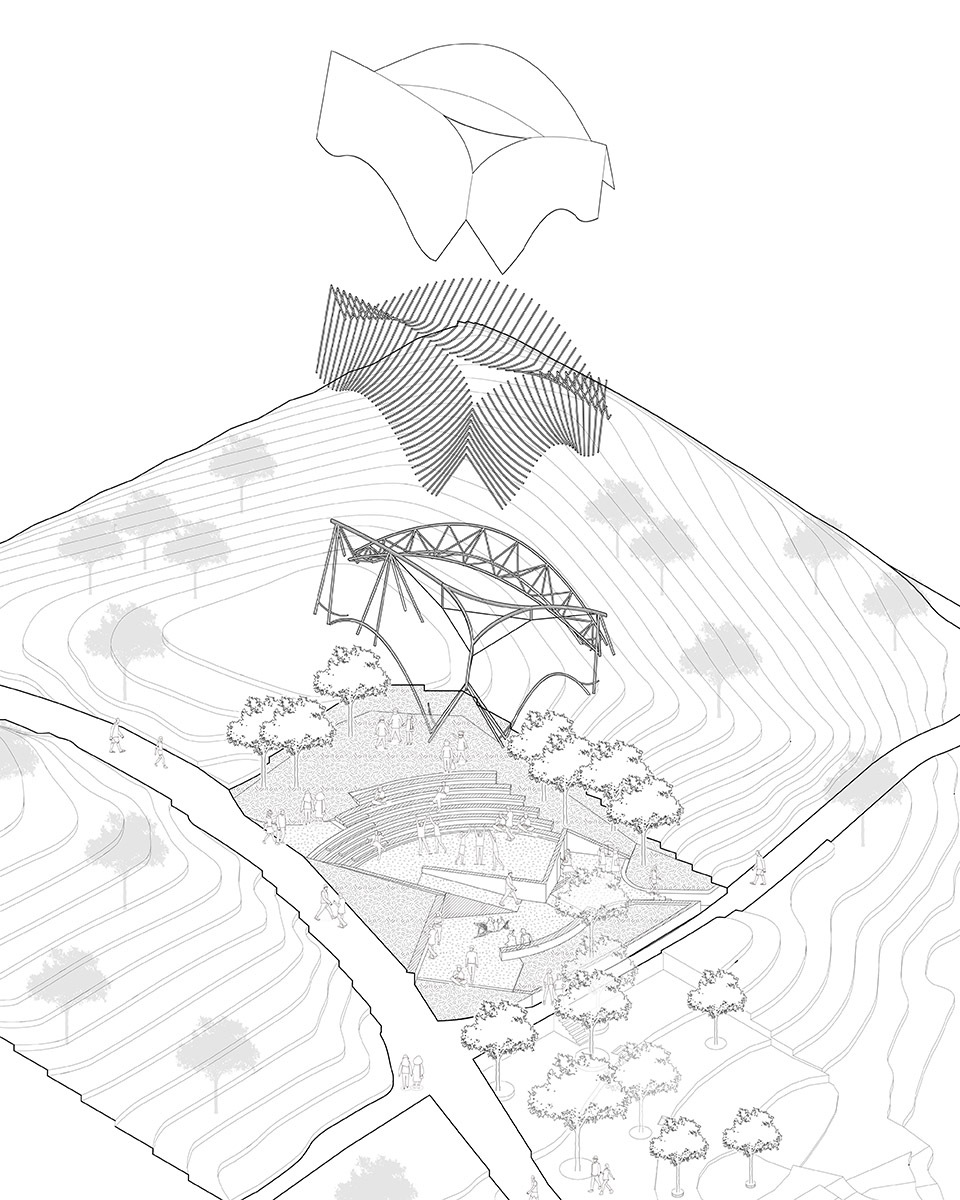

场地的高差被积极地组织到内部空间之中，形成高低两处活动空间，并由一条斜穿的捷径串联。最终设计的基本构成由覆盖、构架、地形共同完成。
The height difference of the site is actively organized into the internal space, forming two activity spaces with one high and one low, which are connected by a diagonal shortcut. The basic composition of the ultimate design is completed together by covering, framing, and terrain.
